The technical plastics polyamide 6 and polyamide 66 are admittedly materials with very similar properties, yet they are frequently in competition to one another. Recently, the tense pricing situation for polyamide 66 and its temporarily limited availability have resulted in it often being replaced with polyamide 6 even in its traditional applications.

However, new developments of components that have traditionally been made from polyamide 66 are now increasingly being directly implemented in polyamide 6.

One current example of this is the cover for an on-board battery charger that is used in an all-electric compact vehicle made by a German car manufacturer. It is composed of Durethan BKV50H3.0 from LANXESS, which is highly reinforced with 50% by weight of short glass fibers.

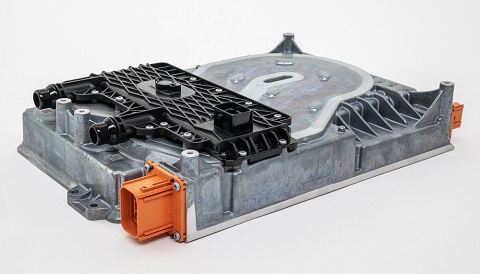

The cover for on-board battery charger is composed of PA6 compounds from LANXESS.

This large-scale application underlines the fact that polyamide 6 compounds do not necessarily have to be hydrolysis-stabilized to be used in cooling applications with glycol-water coolants in electric vehicles.

Permanently leak tight and resistant

Plastic components in the cooling circuit of combustion engines have long been a domain of polyamide 66. This is because the thermoplastic is highly resistant to hot coolants such as water-glycol mixtures. However, the requirements in the thermal management of purely electric powertrains are shifting toward lower temperatures.

For all-electric vehicles, the long-term thermal resistance of polyamide 6 compounds to water-glycol mixtures is sufficient for most of the parts, even for the significantly longer stressing times in some cases.

Thus, the cover permanently withstands temperatures of up to 85°C during vehicle operation without any problems, and burst loads of up to 10 bar are achieved.

High strength and stiffness shown of the compounds ensure that the cover meets the strict leak tightness requirements.

Long-term tests on test specimens also revealed that the mechanical properties of the compound in water-glycol mixtures hardly diminish even after 1,500 hours of storage at 110°C and a pressure of 1.5 bar.

High degree of strength and stiffness

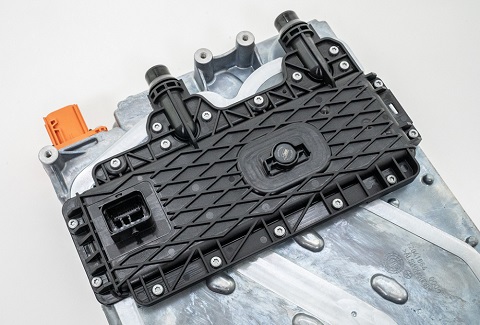

At around 29 centimeters long and 12 centimeters wide, the cover has a considerable flange length. The cover, together with a seal, is screwed to the aluminum housing of the charger.

The high degree of strength and stiffness shown by the polyamide 6 compound ensures that the cover meets the strict leak tightness requirements.

In addition, the cover exhibits other material advantages of Durethan BKV50H3.0. For example, it is easy to process and can be injection-molded at high injection speeds, which benefits short, and therefore economical, cycle times.

Furthermore, its copper-free H3.0 thermal stabilization does not result in electrical corrosion occurring on metallic parts in the cooling circuit. Another of the compound’s virtues is that it is resistant to media typically found in vehicle operation, such as oils, greases, battery electrolyte, and road salt.
