Toray Industries, Inc. has developed a new film for 5G communications. The film offers very good transparency, heat-resistance, flame-retardancy, and dielectric performance. A range of prospective applications include transparent 5G antennas, transparent flexible printed circuit boards, transparent heater substrate materials, and other electronic components.

Also, they would encompass construction materials that benefit from the film’s transparency and flame retardancy, and process release films requiring chemical and heat resistance to ensure visibility for inspections and positioning. The company has begun providing samples to users, and will keep pushing ahead with R&D to accelerate commercialization.

5G technology offers ultra-fast communications for broadband cellular networks but also requires numerous antennas. That is because it uses higher frequency radio waves with short ranges. This situation propelled efforts to explore transparent antennas with good visibility and design that can be installed in all sorts of locations.

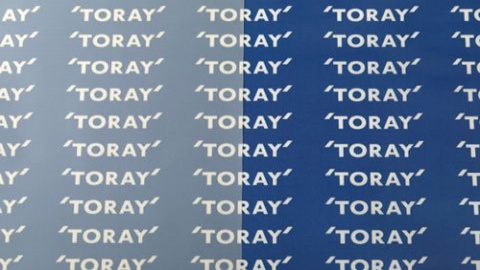

Conventional (left) and highly transparent polyphenylene sulfide films (right).

Existing transparent circuit boards employ polyethylene terephthalate film and transparent polyimide film because they are light and unbreakable. However, their dielectric loss tangent is high, causing large signal losses in 5G communications.

The Toray-developed Torelina, is suitable for 5G circuit boards because of its heat resistance, flame retardancy, electrical insulation, and consistently low dielectric loss tangent in varying temperature and humidity conditions.

Torelina is a unique bi-axially oriented polyphenylene sulfide film. The film was opaque, with the typically yellow tinge of heat-resistant polymers. That was because tiny voids inside the film scatter light and result in low transparency.

Toray therefore combined its polymer design and proprietary particle dispersion technologies to eliminate these voids. It thereby reduced the yellow tinge and increased film transparency without compromising performance benefits. The haze of this highly transparent polyphenylene sulfide film is comparable to that of polyethylene terephthalate film.

Used in transparent 5G antennas, Toray’s new film would help stabilize 5G communications by cutting signal losses under different temperature and humidity conditions and improve visibility and design.

Toray Industries, Inc. has developed a new film for 5G communications. The film offers very good transparency, heat-resistance, flame-retardancy, and dielectric performance. A range of prospective applications include transparent 5G antennas, transparent flexible printed circuit boards, transparent heater substrate materials, and other electronic components.

Also, they would encompass construction materials that benefit from the film’s transparency and flame retardancy, and process release films requiring chemical and heat resistance to ensure visibility for inspections and positioning. The company has begun providing samples to users, and will keep pushing ahead with R&D to accelerate commercialization.

5G technology offers ultra-fast communications for broadband cellular networks but also requires numerous antennas. That is because it uses higher frequency radio waves with short ranges. This situation propelled efforts to explore transparent antennas with good visibility and design that can be installed in all sorts of locations.

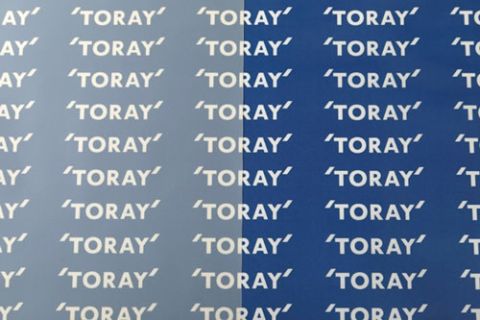

Conventional (left) and highly transparent polyphenylene sulfide films (right).
