NatureWorks continues to grow its portfolio of Ingeo biopolymers specially designed for additive manufacturing with the introduction of Ingeo 3D700 for use in large-format 3D printing.

Monofilaments made with Ingeo biopolymer PLA are broadly used in the desktop 3D printing market having notable performance characteristics such as precise detail, good adhesion to build plates with no heating needed, reduced warping or curling, and low odor while printing.

The properties make Ingeo well-suited for 3D printing using many different types of printers and for a broad range of printing applications from consumer-level to industrial applications.

In large-format printing, the higher rate and volume of polymer deposition can quickly result in excessive warpage with certain materials, like ABS, or significant shrinkage as with some polyolefins or even some general-purpose PLA grades. This can result in failed prints as warping pulls the part away from the print bed or causes layer separation.

Reducing warpage and improving adhesion

With the longer print times and higher-volume material use in industrial applications, failure during production is costly. By controlling the polymer-microstructure, the resulting amorphous PLA grade, Ingeo 3D700, has a low material shrink rate which is important for reducing warpage, improving gap fill and adhesion, and ensuring successful prints.

“With significant growth in large-format additive manufacturing for industrial applications, we saw the opportunity to develop a new Ingeo biopolymer grade specifically designed to minimize the loss of time and material due to failures in large format prints,” said Dan Sawyer, Business Development Leader for NatureWorks.

A common approach for minimizing part warpage in large prints is to use compounded materials with reinforcement. Because Ingeo 3D700 has been designed for low shrinkage, there is an opportunity to use less reinforcing product and still achieve quality large-format parts, while maintaining the reliable printability of Ingeo PLA.

If a specialty print requires additional reinforcement, then cellulose-based additives are easily compounded with Ingeo 3D700 creating a biobased compound alternative to high-cost petrochemical-based compounds such as carbon-fiber ABS.

The new Ingeo 3D700 grade is also finding use in metal casting manufacturing. Using a direct resin-to-print process, Shanghai TuoZhuo is printing sand casting molds that can be as tall as 1-2 meters.

Some testing results

Some partners of NatureWorks evaluated Ingeo 3D700 for use in large-format fused filament fabrication (FFF) and direct resin-to-print processes with positive results.

“In our testing, we found that Ingeo 3D700 goes one step further towards reducing warpage in large-format prints beyond previous Ingeo PLA grades designed for 3D printing,” commented Xiaofan Luo, President at Polymaker, a leading manufacturer of 3D printing material and filament. Polymaker also measured improved z-layer adhesion when printing with Ingeo 3D700.

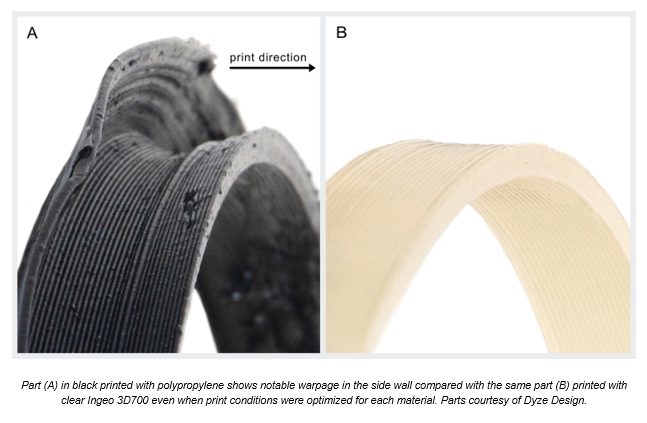

Dyze Design, an extruder designer and supplier of components for large-format printers, ran print tests comparing Ingeo 3D850, a grade already known for its low-shrink characteristics, and Ingeo 3D700.

“Our tests showed that a large-format part printed using Ingeo 3D850 demonstrated a shrink rate of 1.25%. In comparison, the same part printed with Ingeo 3D700 had a shrink rate of less than 0.25%,” stated Philippe Carrier, CTO at Dyze.

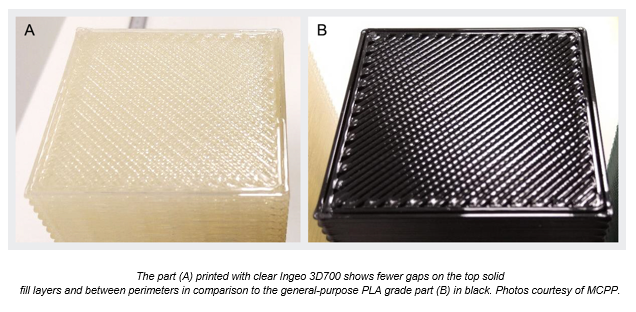

Filament manufacturer, MCPP, conducted printing tests using filament made from Ingeo 3D700 and demonstrated a 11-13% increase in flow rate due to the optimized melt viscosity, compared to a general-purpose PLA.

The new Ingeo 3D700 grade is also finding use in metal casting manufacturing. Using a direct resin-to-print process, Shanghai TuoZhuo is printing sand casting molds that can be as tall as 1-2 meters. The 3D printed molds are replacing traditional wood foundry molds because they are faster to produce, more cost efficient, and easier to maintain as wood molds warp over time due to moisture.

Ingeo 3D700 is now available for use as resin pellets for direct resin-to-print processes or as filament for FFF process in the United States, Asia, and Europe.
