Ordinarily, when using an off-the-shelf 3D printer, it's quite difficult to print a single object that incorporates multiple materials. An experimental new system could make it easier, though, by utilizing a "programmable filament."

Most consumer-grade 3D printers create objects via a process known as fused deposition modelling. This involves loading them up with a spool of polymer filament, which they subsequently heat to the melting point, then extrude out of their print nozzle. In this way, they build items up, one horizontal layer at a time.

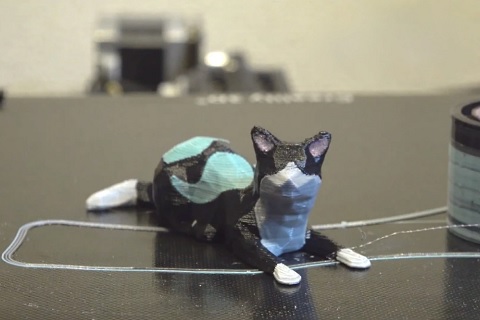

A 3D-printed cat, made from one filament comprised of four types of PLA plastic. (Photo:Haruki Takahashi)

If one wants to 3D-print an object that incorporates multiple types of polymer (such as ones of different colors), it usually has to swap the various polymer filament spools in and out of the printer, as it's printing the different parts of the object. That's where the programmable filament system comes in.

It starts by analyzing the computer model of the object to be printed, determining which parts of that item will be printed out of which polymers, and in what order. It then utilizes the existing 3D printer to create a customized filament spool, different sections of which are made out of the different polymers.

That spool is printed as a flat horizontal spiral. To start, all of the sections that need to be made of the first type of polymer are printed, with gaps between them where the other polymer(s) will go. The one or more other polymers are then deposited into those gaps, with the joints between the different sections of filament being spliced together.

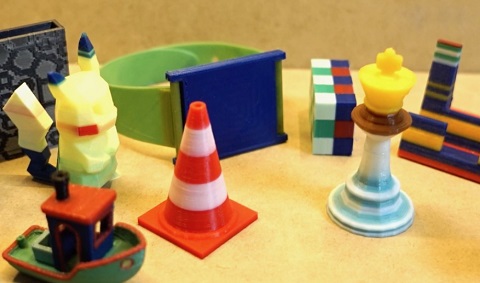

Various examples of items printed using the programmable filament technology. (Photo:Haruki Takahashi)

While the process does still require the user to manually swap in the different source spools, this only has to be done a single time for each type of polymer being used.

Once the resulting multi-polymer composite spool is loaded into the printer, the object can be printed all in one go. At the points in the build process where changes between polymer types need to occur, the extruded "programmed" filament will change accordingly.

The system is being developed via a collaboration between scientists at Meiji University (Japan), Osaka University and Texas A&M University. A paper on the research was recently presented via the online ACM UIST Conference.
