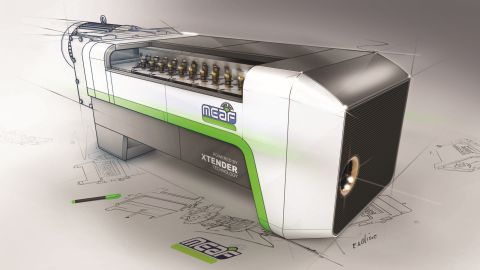

At K 2025, MEAF Machines will launch its new Xtender technology – a polymer melt co-processing technology, with exceptional mixing and degassing properties, to increase the intrinsic viscosity (IV) value of rPET when producing rPET film and sheet.

At the K 2025, MEAF Machines will launch its new Xtender technology, a polymer melt co-processing technology with exceptional mixing and degassing properties.

Developed by MEAF in collaboration with an Italian partner, the Xtender technology can be (retro)fitted on both single-screw and twin screw extruders.

The Xtender technology allows the IV to be increased in the liquid state of the polymer by means of polycondensation, also known as LSP.

Located directly downstream of the extruder, the melt is transported axially through a disc processor consisting of several wedge-shaped discs, where contaminants and unwanted gases are extracted from the polymer by means of a vacuum.

The temperature of the melt is regulated by heating elements and a core cooling element, while the setup includes two inline viscometers to detect and control the IV, as well as an adjustable feed for additives to accelerate the condensation reaction.

An important distinguishing feature of the Xtender technology is that the design allows a specific flow rate, due to repeated passages of the melt over the wedge-shaped discs. The melt surface area achieved with the discs is more than 72 times larger than twin-screw extruders, resulting in highly controlled conditions for the polycondensation reaction.

“There is great emphasis in the EU to increase the proportions of recycled rigid packaging material in new products. This new technology allows PET processors to convert low IV Post Consumer Recycled (PCR) and Post Industrial Recycled (PIR) material - from both in-house and external sources - into a high quality sheet,” said Ardjan Houtekamer, Technical Director at MEAF Machines.

Houtekamer also stated that the next step in the development of the Xtender technology is to obtain FDA and EFSA approval for food grade PET production using 100% recycled material, without the necessity for barrier layers of virgin material.

The Xtender technology will be available to customers globally, starting in Q4 2025 and the first unit will be on display at K 2025.
