Toyochem Co., Ltd., a member of the Toyo Ink Group, has launched a highly flexible electromagnetic interference (EMI) shielding film, the LIOELM TSS510-HF, designed to meet the demanding performance requirements of 5G flexible printed circuits (FPCs).

The newly developed TSS510-HF addresses the needs of electronics designers for improved shielding performance for the transmission of high-frequency signals and for high flexibility so circuits do not break when bent.

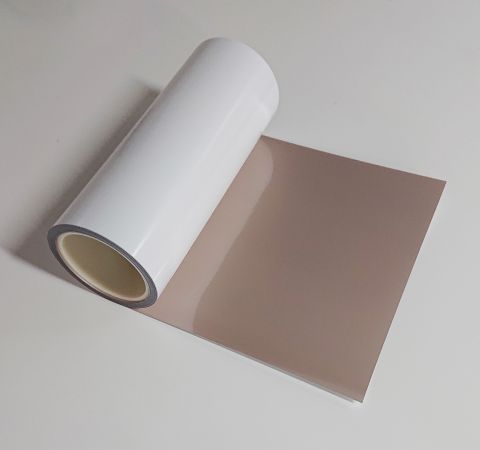

Highly flexible LIOELM TSS510-HF EMI shielding film (roll).

The flexibility of FPCs has seen their adoption in a wide range of industrial and consumer electronic devices. As the mobile world transitions from 4G to 5G, the demand for higher performance flex circuits is expected to grow in line with demand for more advanced smartphones and 5G/IoT devices, including camera flex circuits, display flex circuits and wearable devices.

While copper plating technology is typically used in the manufacturing of FPCs to absorb radio and other EMI waves, copper is not ideal for applications that require high flexibility, often cracking when the circuit is bent or folded, or burring during the die-cutting process.

Addressing these challenges, Toyochem technicians in Japan engineered the TSS510-HF shielding film to exhibit extraordinary flexibility, with no cracking even after bending the film 20 times at 180 degree angle, 2kg load (see Image 2 above).

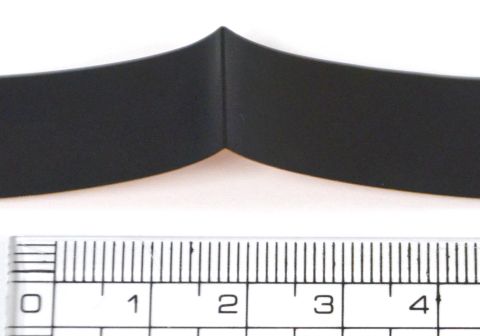

Product does not crack even after bending the film 20 times at 180 degree angle, 2kg load.

Toyochem was able to achieve these advances by using a flexible and conductive urethane resin in place of traditional copper wiring as the EMI shielding material.

The resin was first dispersed with conductive filler, which generates a resin composite with enhanced compatibility between film flexibility and tensile strength. The optimized film structure enabled the company to solve the cracking and burring issues associated with copper foil shields.

Performance tests of the TSS510-HF shielding film demonstrated reduced transmission loss at the -6.5 dB level at 15 GHz, relative to -8.5 dB for conventional shielding films. Shielding effect testing generated values greater than 70 dB at 15 GHz, compared to 60 dB for conventional types, thereby making the TSS510-HF suitable for use in FPCs in the high-frequency band.

Moreover, its exceptional bendibility offers FPC design engineers unlimited freedom in the shaping of flexible electronic devices.
