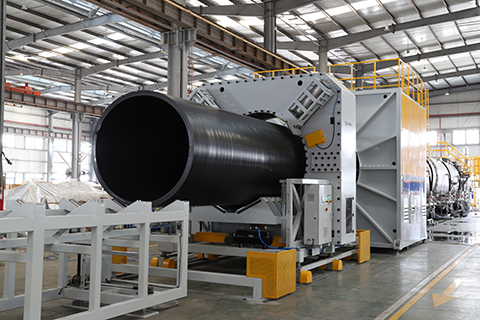

OD2M HDPE Pipe Extrusion Line
LSP-2000HDPE Pipe Extrusion Line
Size range: Φ1400~Φ2000mm
Production output:2000-2200kg/h
Pressure grade: SDR33-SDR13.6
Extruder adopts 40 L/D screw barrel with spiral feed bush, ensuring high output and good plasticizing quality and low melt temperature .
Adopt Melt Cooler after extruder which can reduce material sagging and ensure uniform pipe thickness.
Pipe Head adopt spiral + basket structure, equipped with multi-spiral flow distribution body and air oil cooling structure to further stabilize the melt temperature.
Vacuum control adopts automatic negative pressure closed-loop control system to ensure rapid pipe forming , noise reduction and more than 50% energy saving rate.
Haul off Unit adopts "one-to-multiple" servo synchronous control with speed ratio range exceeding 30 times, stable pulling force and waste reduction.
The automatic swarfless cutter is equipped with "one-button automatic diameter change" function and it can cut large-diameter pipe simply and quickly.
