Ruiying 6-Cavity 3-Servo Automatic Blow Molding Machine Output-8,000 bph

Jan 27, 2024
00:30

MACHINE PARAMETER

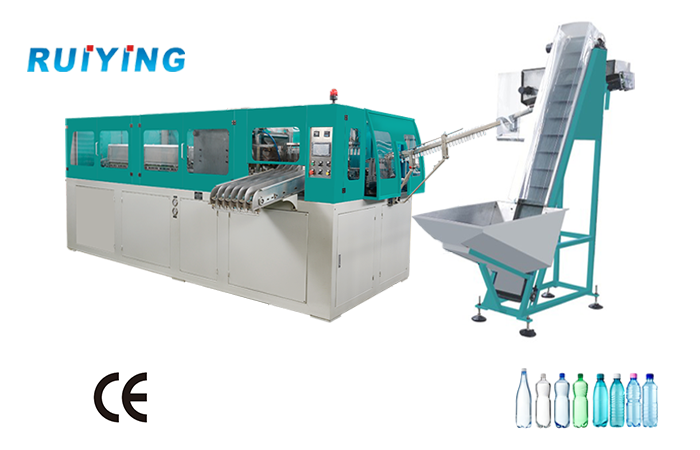

68-6 750×450.png

RYSB-D03-68/8-3S

Number of cavity

Cavity

6

Max. container volume

mL

600

Max. container diameter

mm

68

Max. container height

mm

250

Max. neck diameter

mm

38

OUTPUT

bph

8,000

Max. heating power

Kw

54

Blowing pressure

kg/cm²

30

Machine size

m

4.38*1.8*2

Machine weight

T

3.8


APPLICATION



FEATURES

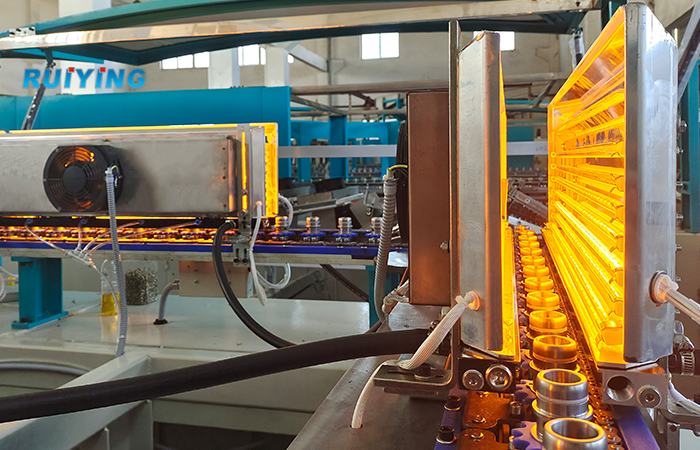

○ Linear construction transports preform for heating and bottle forming.

750X450 轨道.png

○ Gasbag locking mold.

○ Upgrade production capacity.

○ Upgrade power efficiency.

○ Simplified operation by MMI control panel.

○ Convenient mold replacement and maintenance.

○ Save investment and enhance competition.

○ Air recovery system ( Air consumption will be save 10-25%).
