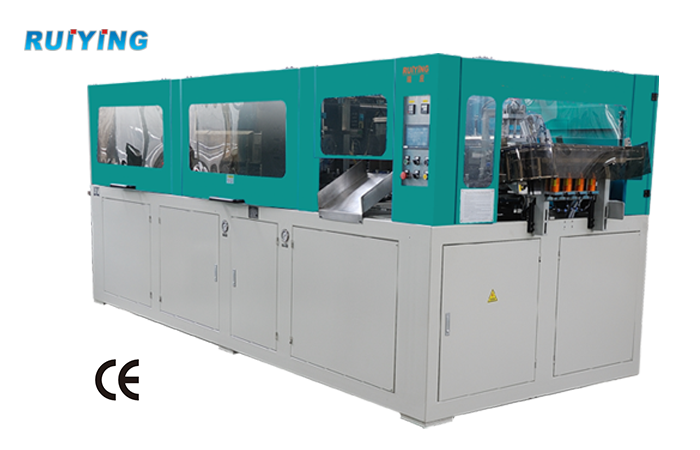

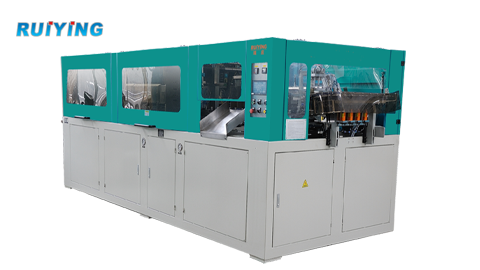

Ruiying Heat-resistant bottle 4-Cavity Automatic Blow Molding Machine Output-1,800
MACHINE PARAMETER

RYSB-C04-118/4 | ||
Number of cavity | Cavity | 4 |
Max. container volume | L | 2.5 |
Max. container diameter | mm | 118 |
Max. container height | mm | 350 |
Max. neck diameter | mm | 38 |
OUTPUT | bph | 1,800 |
Max. heating power | Kw | 36 |
| Blowing pressure | Kg/cm² | 30 |
| Machine size | m | 4.38*18*2 |
Machine weight | t | 3.2 |

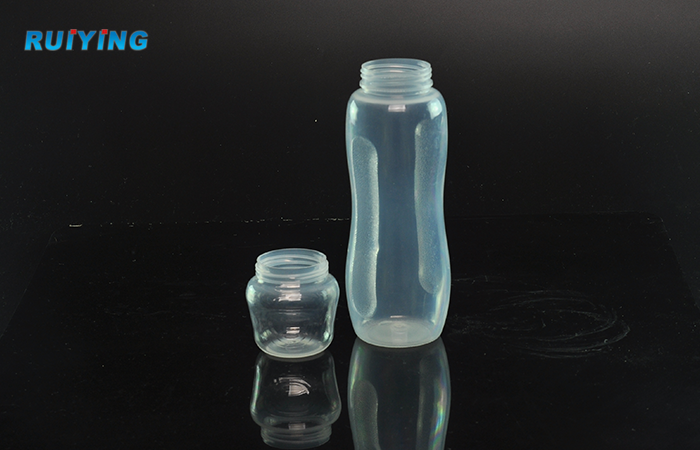

APPLICATION

![]()
FEATURES
○ The first fly-out seal patent technology, making it easier for sealing.
○ Gasbag locking mould, the mould will not dilated.

○ Easier operation and higher stability.
○ Air recovery system ( Air consumption will be save 10-25%).
○ Choose servo control to ensure high-speed operation and precise locating.
