New approach: 3D printing 51-foot long yacht hull mold

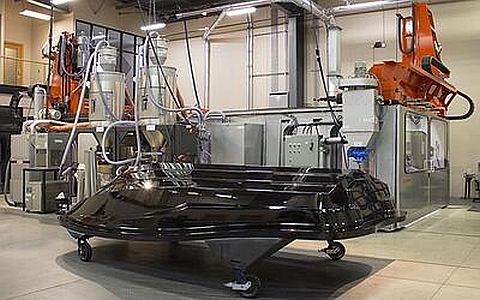

To demonstrate to the industry how this might work, Thermwood printed a 10 foot section from a 51 foot long yacht hull mold. This rather unique mold design was specifically developed for additive manufacturing.

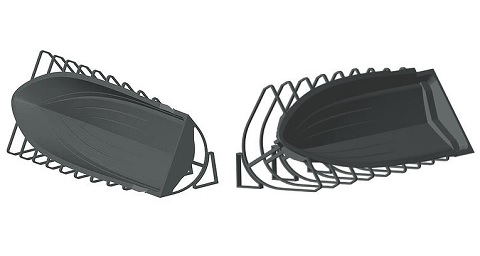

It is printed in sections, each about five foot tall. These printed sections are then bound together both chemically and mechanically using high strength polymer cables into two mold halves. The two mold halves then bolt together to form a complete female mold for the yacht hull.

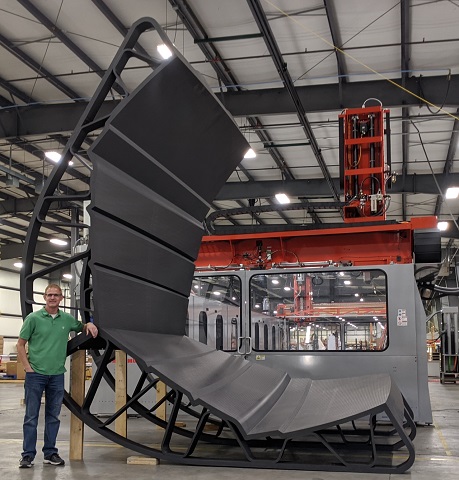

There are several interesting aspects to this design. First, each mold section has a molded in rocker. When the mold is fully assembled, it rests on the floor on these rockers. At this point, the mold can be rolled over to tilt about 45 degrees to either side, kind of like a giant rocking chair. This allows for easier access during the layup process.

A set of molded wedges are clamped to the rockers to hold the mold in the desired position. Once the hull has been laid up and fully cured, the mold is rolled to level and the printed wedges are clamped to both sides, holding them level. Then the two mold sides can be un-bolted and slid apart to release the finished boat hull.

The test pieces Thermwood printed show that this approach will work in practice. The printed sections of this test mold are made of carbon fiber reinforced ABS from Techmer PM. ABS was chosen because of its physical properties and relatively low cost compared to other reinforced thermoplastics.

Certain thermosets will work directly on the ABS molded surface using just traditional mold release practices, however, other thermoset materials are based on solvents that can chemically attack the ABS polymer.

To prevent this, Thermwood has experimented with several protective coatings including traditional mold gel coats. While virtually all coatings tested worked at room temperature, large thermoset molds often experience some heat as a result of the exothermic reaction that occurs during the thermoset curing process.

Thermwood tested each of the coatings at 200℉ and found that some worked at both room and elevated temperature, while others that worked at room temperature did not work well at the elevated temperature.

While it appears that the mentioned approach will work today for certain thermosets, the ideal would be to develop a low cost polymer that is chemically resistant to the other thermoset solvents and eliminate the need for a protective coating.

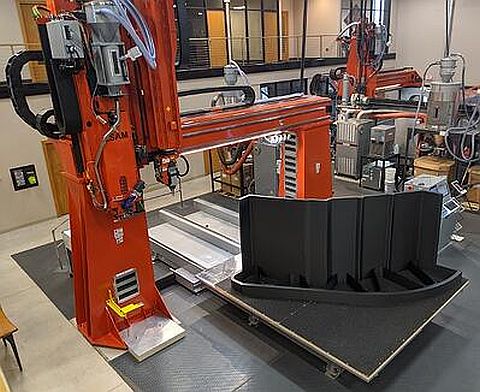

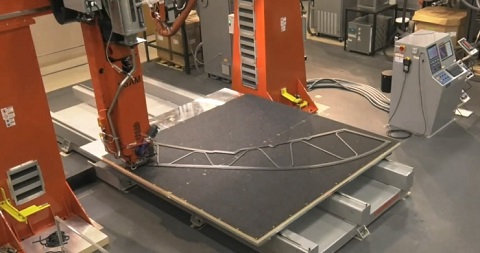

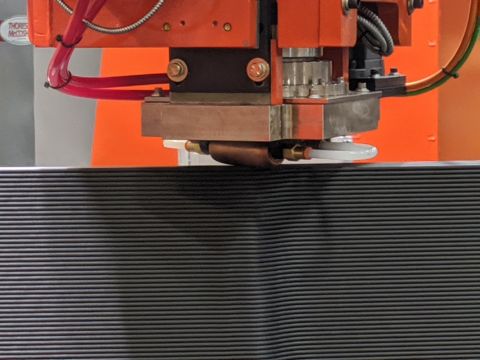

These demonstration pieces were printed and trimmed on Thermwood’s 10x10 foot LSAM MT, the smallest and lowest cost additive manufacturing system currently available from Thermwood. The entire mold section, made of four printed pieces, weighs 4,012 pounds and required 65.5 hours to print.
