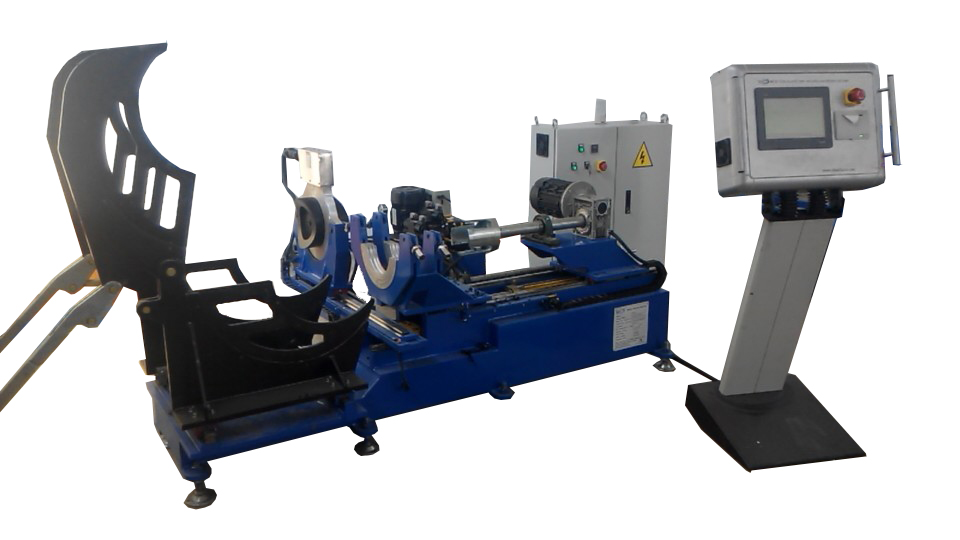

Saddle Fusion Machine for HDPE reducing tee
Feb 20, 2024
Application and features
◆Suitable for fabricating PE reducing tee in a workshop. Integrated function of welding and taping enables it can complete the whole fabricating process
◆ Removable PTFE coated heating mould
◆ Separate two-channel timer records times in soaking and cooling phases.
◆ Digital high-accurate pressure meter indicates clearer readings.
◆ Linear guide ways are equipped with main pipe clamps, branch pipe clamps, knife tool and heat mould
Technical Specification:
Model | MRH 630 |
Working range | Reducing tee |
Max. Temp heating plate | 270℃ |
System pressure ranges | 0～7MPa |
Working voltage | 380V，50Hz |
Heating plate power | 6 KW |
Hydraulic unit power | 1.5KW |
Drill motor power | 2.2 KW |
Power | 9.7KW |
