With the all-electric e-win 1800, ENGEL will present a WINTEC injection molding machine based on the proven technology of the ENGEL e-mac for the first time in Europe at K 2025.

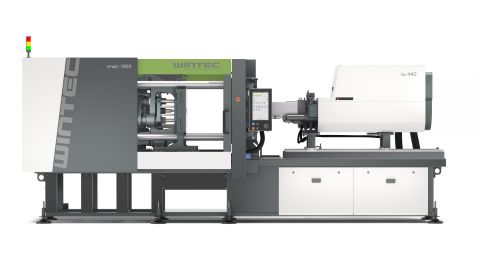

WINTEC all-electric e-win 1800 based on ENGEL’s proven e-mac technology.

The e-win series combines a compact design and high precision. It is designed for the small and medium-sized machine market and ensures short delivery times and customer-focused standardized engineering based on ENGEL’s expertise.

At WINTEC stand, an e-win with 1,800 kN clamping force will demonstrate its efficiency in a compact production cell. An 8-cavity mold will produce flip-top closures made of random PP with a shot weight of 32 g, in a cycle time of under 10 seconds and with consistently high part quality.

Precise injection unit for shorter cycle times

An electric ball screw drive combined with a belt drive powers the nozzle movement. Two ball screws enable fast, uniform injection with high repeatability. This setup reduces cycle times, ensures centric and precisely adjustable contact force, minimizes the risk of material leakage and maintains consistently high part quality. In addition, the swiveling injection unit allows for quick and easy screw changes.

Efficient clamping system

The proven drive system: consisting of a servomotor, ball screw and belt drive – ensures maximum power transmission efficiency and dynamic response of the clamping unit, delivering dry cycle times in line with market standards.

The 5-point toggle lever mechanism allows large opening strokes and automatically adjusts the mold installation height. A reinforced frame structure on the moving platen minimizes deformation, optimizes force distribution and enables burr-free parts. The linear guides operate with minimal friction, reducing maintenance, improving machine cleanliness and enhancing reproducibility.

Less scrap thanks to digital assistance systems

This series also supports ENGEL’s digital assistance systems. The machine features the iQ weight control system, which analyses the filling behavior during each shot and adjusts the holding pressure curve in real time within the same cycle. This reliably compensates for fluctuations in the material viscosity and reduces scrap by up to 50%.

WINTEC relies on the proven C3 control system, which shares the same intuitive user interface as ENGEL’s CC300. For operators already familiar with ENGEL machines, there is no need to adapt. For new users, the interface is highly intuitive and easy to learn.

Powerful and stable ejector system

The ejector also operates via a servo drive with two ball screw spindles. This ensures high ejector force, outstanding system stability and low maintenance costs – ideal for durable, reliable processes.

Flexible mold area for a wider range of applications

Large platen surfaces and the near-frictionless movement of the mold platens via linear guides enable the use of large-format molds while maintaining excellent platen parallelism. This extends mold life and ensures consistently high part quality.
