Guill Tool introduces a new extrusion crosshead – Unicam crosshead. The name derives from a combination of two of the company’s most tried and true technologies: Single-Point concentricity adjustment system and the Cam-Lock fastener-free assembly system.

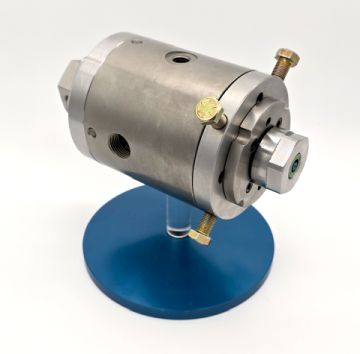

The assembled Unicam crosshead.

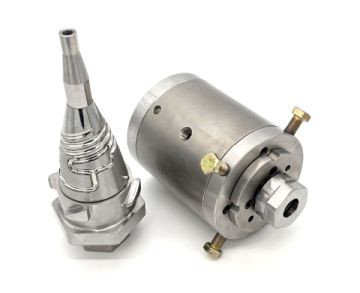

Disassembled Unicam crosshead.

On the front of the head, the new Universal Adjustment system allows the user to choose either the traditional 4-bolt method of concentricity adjustment or the Single-Point style of concentricity adjustment.

To switch from traditional to Single-Point operation, simply remove the four locking bolts that hold the adjustment ring in place. If an application requires very fine adjustments, optional Micro-Adjust screws are available.

On the back of the head, the newly improved Cam-Lock system allows for the head to be disassembled with a single turn of a wrench for very quick and easy color changes or cleanouts. There is no need to struggle with hammers and pry-bars to disassemble components for cleaning.

Thanks to the Cam-Lock system, turning the disassembly wrench not only loosens the splitter, but continuing to turn the wrench will mechanically extract the splitter. With just one half-turn of a wrench, users will typically be able to clean or change colors and start the line again in less than ten minutes.
